Micromake 3D Printer Pulley Version Linear Guide DIY Kit Kossel Delta Auto Leveling Large Printing Size 3D Metal Printer
Micromake 3D Printer
1.with the printer, you can get 8G sd card and test material and the hex tool.
2.Russian customers has no custom tax.
1.Customers have to know the import laws in your country before ordering; free
shipping doesn't include the import tax. Check before ordering !
2.After make an order, please leave an message about the declared value in invoice.
3.The steppr motor has update to all black version.
4. Because of the various version and big difference of Mac and Linux, so we can only provide the related drive, we can't promise any version of mac and linux will be work with our printer, we suggest to use Windows system, no need drive and you can use directly.

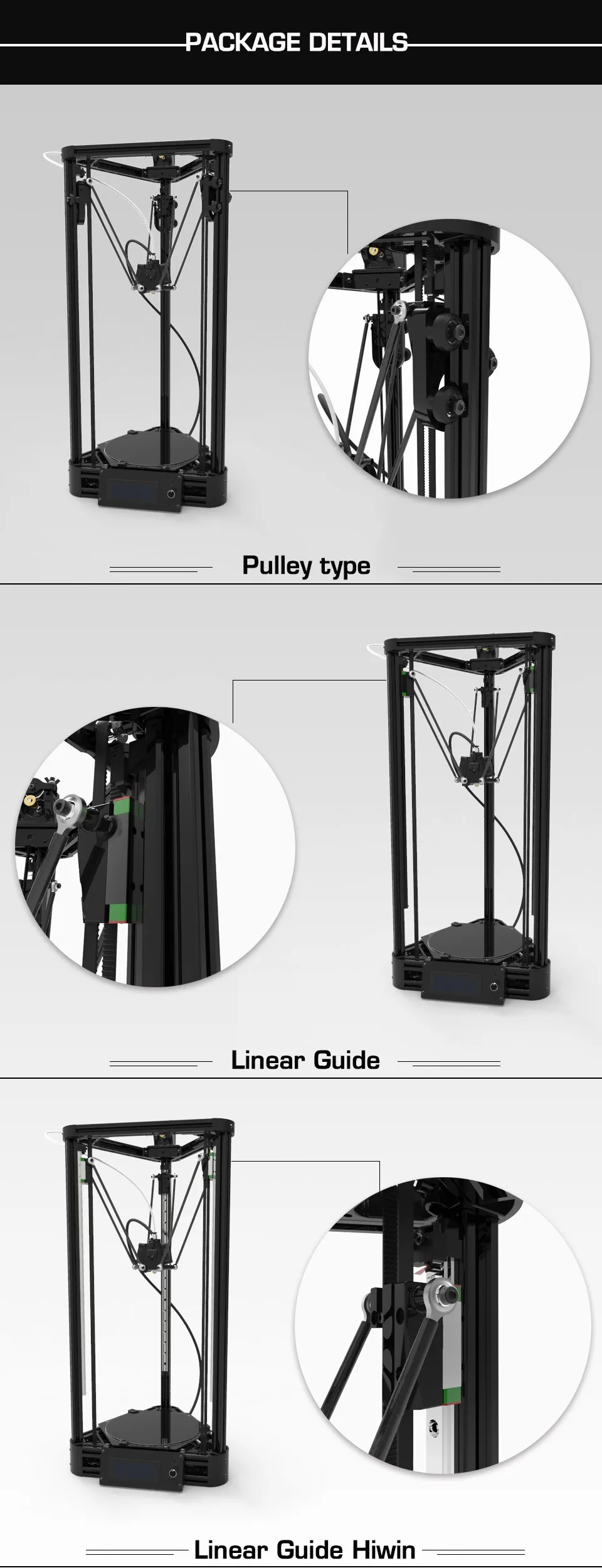

Type 1:Worry Free Version. On the basis of linear guide, all the connection has assembled you can finish the production with only some sample steps, and you can get extra 1kg PLA environmental materials for free.
Type2: Pulley Type:Pulley version with power supply(12V,6A)+8G SD card+test pla+tool kit.
Type 3:Linear Guide Hiwin: Hiwin Linear guide with power supply(12V,15A)+8G SD card+test pla+tool kit+Heatbed
The linear rail is suitable for high-demanding of accourcy and high cost efficient.
Type4: Add heatbed power:Pulley version with power supply(12V,15A)+8G SD card+test pla+tool kit+Heatbed
Type5: Linear guide: Linear guide with power supply(12V,15A)+8G SD card+test pla+tool kit+Heatbed
The linear rail is produced by local place which add special flange to avoid the slide block drop down.

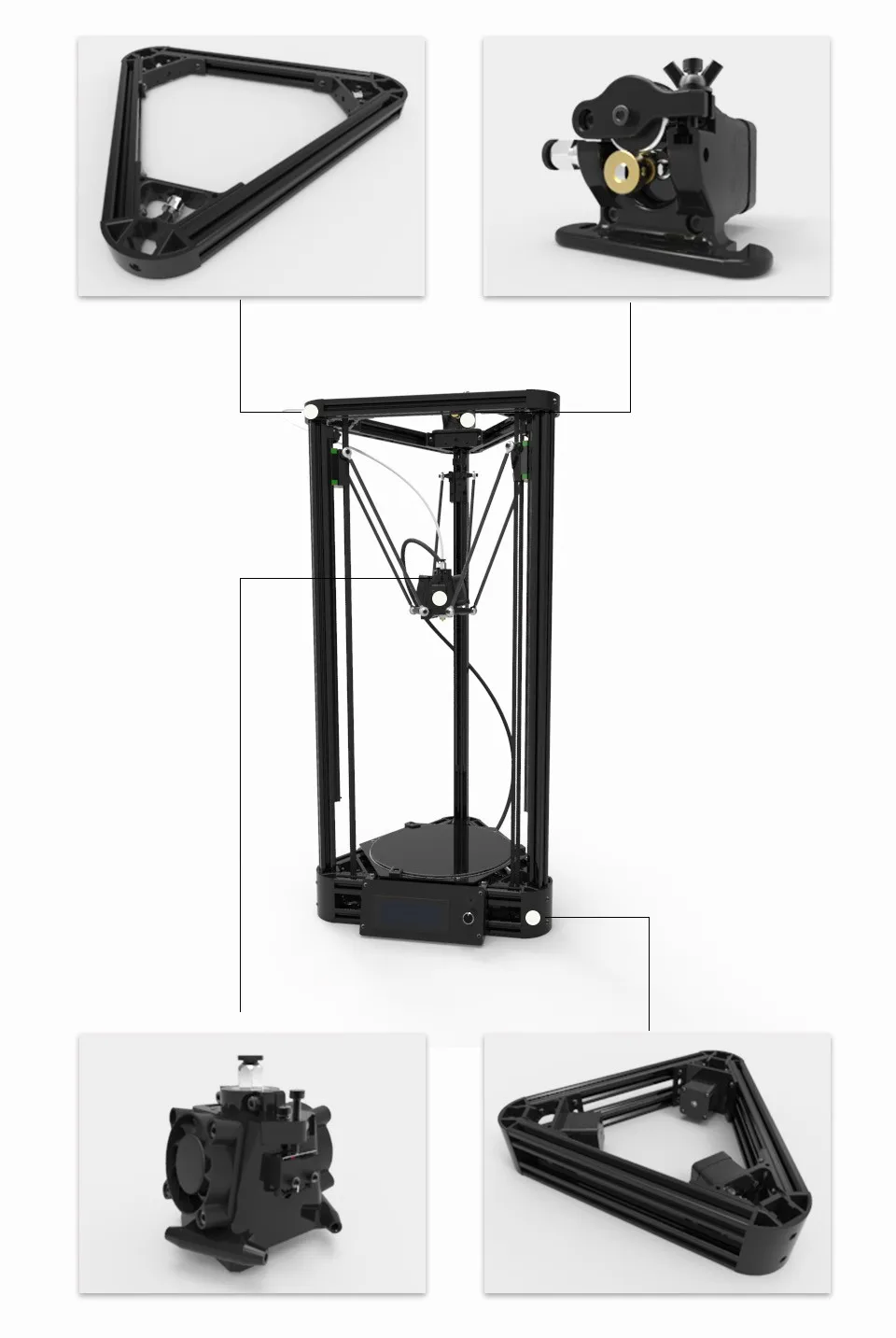

1.All injection molding non-standard parts
2.Black oxidation aluminum profile
3.High performance control board
4.Double air duct effector
5.High intensity extruder
- Layer resolution of 50 microns.
- MAX Printing Speed: 150 mm/s.
- Build size: Maximum 180mm*300mm,but with 180mm you need adjust many times, usually the max diameter is 160~180mm, and the max height is 300~320mm.180mm*300mm is the limit.
- Full Metal E3D V5 long distance J-head nozzle Extruder.
- Material type: PLA, ABS, wood, nylon
- Material specifications 1.75mm in diameter.
- Positioning accuracy: XYZ:0.01MM
- Printing Color: Single color.
- Nozzle diameter: 0.4mm (customized 0.3mm/0.2mm).
- Recommended extruder temperature: 240°C
- Best ambient temperature: ≥25°C.
- Power requirements:110V~220V,60W
- Connection: SD card or USB.
- The file print format: STL,G-Code.
- Compatibility: Windows,Mac
- Device Package weight: Pulley Type about 7.5 kg ,Linear Guide about 8.5
The installation kits such as the motor, fan and the limit endstop are all largely customized by our factory, so we can finish the ordered-length and connector, not to link the extension cord in the later period. The head of the printer has changed many times according to the practical usage in recent one year, now it has solved the problems of stop up and weeping thoroughly.

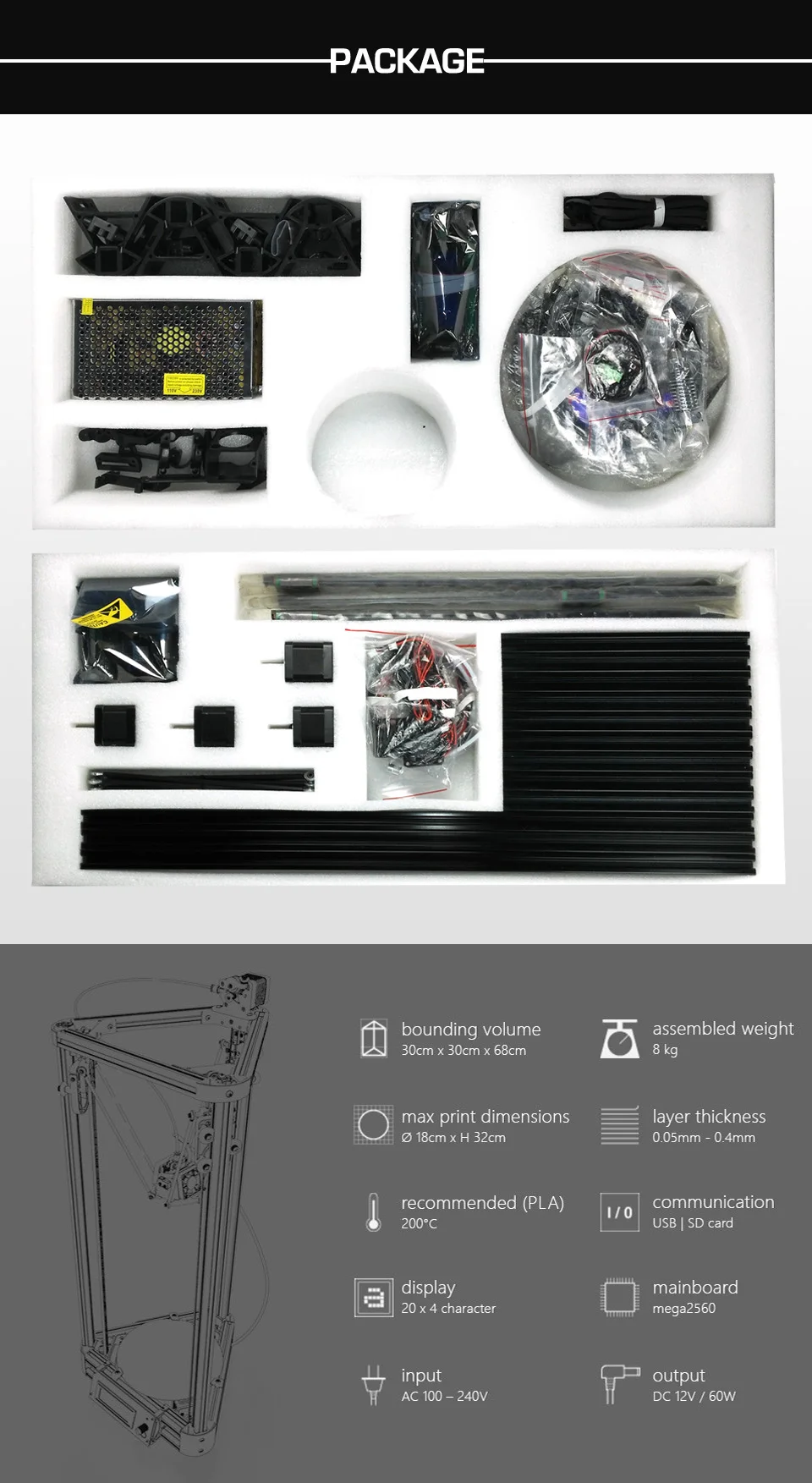

With best quality pearl wool, promise you receive the product safe and fast. All the components are packaged in different hole with the lables in the sales list to easy your assemble. The screws are also sealed in different bags with different labels, so don’t worry any mistake！
